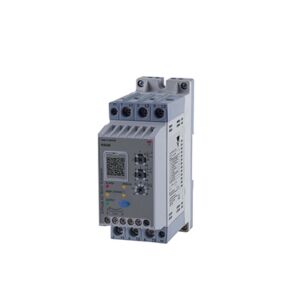

Carlo Gavazzi Motor Controller 3-Phase Soft Start/Stop RSGD4025E0VX210

Carlo Gavazzi Motor Controller Soft Start/Stop 3-Phase Motor With Heatsink, 110 - 400 VAC Control Voltage, Supply Voltage: Internally Supplied, Operational: 220 – 400 VAC, FLC: 25A, 2 Relay Output, Overload Protection (Class 10), DIN or Panel Mount.

RSGD is an extremely compact and easy to use 3-phase soft starter for AC induction motors rated up to 100Arms. The starting parameters can be easily set-up through 3 knobs. The integrated motor overload protection (Class 10) and Modbus communication** result in a higher installation flexibility, offers a number of integrated diagnostic functions that can replace additional components inside the electrical panel. Typical applications include: compressors, pumps and fans.

General Characteristics

• Easy to use. The RSGD is equipped with a self-learning algorithm that automatically adjusts the start parameters to optimise the motor starts and stops.
• Fast installation and set-up. Only 3 settings are required (FLC, ramp-up and ramp-down).
• Compact dimensions. 12 - 45Arms in 45mm wide housing, 55 - 100Arms in 75mm wide housing.
• Integrated protection. Diagnostic functions provide additional protection. RSGD is also equipped with an overload protection (Class 10)*.
• Torque control during ramp-down. Smoother deceleration of the load.
• Complete monitoring. The RSGD is equipped with a Modbus/RTU communication port by 2-wire RS485 connection**.
• Guided model selection. Easy to use selection tool to select the appropriate soft starter model depending on the application type.

* RSGD VD210, VX210, VX310C, VX311C models only

** RSGD 75mm models only
