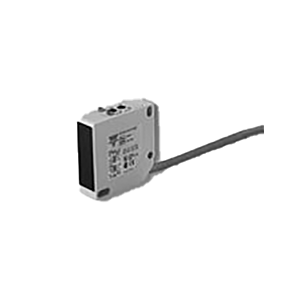

Carlo Gavazzi Photoelectric Sensor Through Beam 17x50x50mm, PC50CNT20R

Carlo Gavazzi Photoelectric Sensor Through Beam Emitter, W17xH50xD50mm PC/ABS Housing, Adjustable 20m, Cable, 12-240VDC & 24-240VAC

The PC50CNT. is a family of general purpose through-beam sensors in a compact square 17 x 50 x 50 mm reinforced RC/ABS-housing. They are useful in applications where basic sensors provide adequate sensing performance. The long sensing range together with sensitivity adjustment gives a very flexible sensor. Light and dark operation is switch selectable.

General Characteristics

• Range: 20 m
• Adjustable sensitivity
• Modulated, infrared light
• Supply voltage: 12 to 240 VDC and 24 to 240 VAC, 50/60 Hz
• Output: Relay 3 A, 30 VDC, 240 VAC
• Make and break switching function
• LED-indication for output ON, signal stability and supply ON
• High EMC immunity
