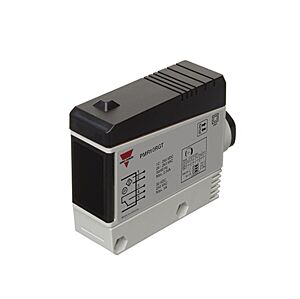

The PC50CND. is a family of general purpose diffuse-reflective sensor in a compact squared 17 x 50 x 50 mm reinforced PC/ABS-housing. There are useful in applications where basic sensors provide adequate sensing performance. The long sensing range together with sensitivity adjustment gives a very flexible sensor. The DC types are with a transistor output and the configuration is fully programmable (NPN, PNP, NO and NC).
General Characteristics
Range: 2 m
Adjustable sensitivity
Modulated, infrared light
Supply voltage: 10 to 30 VDC
Output: 200 mA, NPN or PNP
Make and break switching function selectable
LED for output indication, signal stability and power ON
Protection: reverse polarity, short circuit, transients
