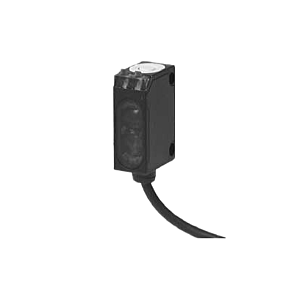

Carlo Gavazzi Photoelectric Sensor Diffuse Reflective Color Mark, LD32CND15NPT

Carlo Gavazzi Photoelectric Sensor Diffuse Reflective Colour Mark, W12xH32xD20mm PMMA/ABS Housing, Teach-In Adjustable 150mm, NPN NO & NC Switching, Cable, 10-30VDC

The LD32CND15 sensor family comes in a compact 12 x 32 x 20 mm reinforced PMMA/ABS-housing. The sensors are useful in applications where high accuracy detection as well as small size is required. The Teach-In function for adjustment of the sensitivity makes the sensors highly flexible. The output type is preset (NPN or PNP), and the output switching function is programmable (NO or NC). The small laser spot makes the diffuse-reflective sensor useful as colour mark sensor.

General Characteristics

• Miniature sensor range
• Range: 150 mm
• Sensitivity adjustment by Teach-In programming
• Modulated, red laser light 650 nm (class 2)
• Supply voltage: 10 to 30 VDC
• Output: 100 mA, NPN or PNP preset
• Make and break switching function programmable
• LED for output indication, signal stability and power ON
• Protection: reverse polarity, short circuit and transients
• Excellent EMC performance
• Accurate detection of small printing marks
