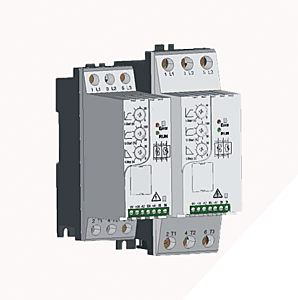

Fairford Motor Controller Soft Start/Stop 3-Ph. Motor, PFE-18

Fairford Motor Controller Soft Start/Stop 3-Phase Motor, Control: 24VDC, Operational: 230-460VAC, 41A AC-53b, 22kW@400V 30HP@460V, Internally Supplied

The PFE is the latest development from Fairford Electronics, who have 25 years of experience producing innovative designs in the soft start market. With ratings from 2.2kW to 22kW, the PFE is ideally placed to support the majority of AC induction motors in use today. This makes the PFE the natural choice for distributors and customers alike. Benefiting from Fairford’s excellence in engineering, the PFE combines the quality and reliability you have come to expect. This is one product that ticks all the boxes.

General Characteristic

• Voltage: 230V AC - 460V AC
• Current: 5 - 41A (460V)
• Control Voltage: 24VDC
• Start Time: 1 - 30s, Stop Time: 0 - 30s
• Start Pedestal Voltage: 30% - 100%
• Standard Duty: IE: AC53B : 3-5: 355
• Industry Standard 45mm width (up to 16A)
• DIN Rail Mounting
• Two Phase Control
• Internally Bypassed
• Over Current Protected
• Designed for: CE, UL, CSA, CCC
