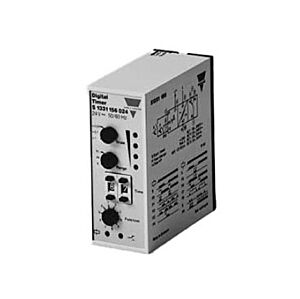

Carlo Gavazzi Timer Multi-Functions Digital Plug-In S1331156230

Carlo Gavazzi Timer Digital Multi-Functions, Range: 0.01s-99h, Plug-In, SPDT, S Housing, Supply: 230VAC.

Plug in microprocessor based multi function time relay with 10 selectable mode of operation and time range from 0.01s to 99h. Function and time range setting by 3 rotary switches in the front. Time setting by two digital thumb wheel switches in the front. Time controlled by contact, open collector output (NPN) or power supply.

General Characteristics

• Microprocessor based digital timer.
• 10 functions within delay on operate, interval, symmetrical recycler, recycler with fixed ON time, time period multiplier.
• Time ranges: 0.01s to 99h.
• Digital trigger input for time start and reset.
• Time stop input.
• Four yellow LEDs  each indicating 25% of remaining time.
• Connection for NPN sensor.
• Output: 5 A SPDT relay.
• Plug-in type module.
• S-housing.
• LED-indication for relay and power supply on.
• AC or DC power supply.
