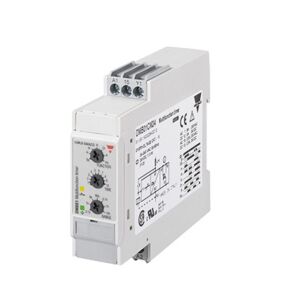

Carlo Gavazzi Timer Multi-Functions Din-Rail DMB01CM24

Carlo Gavazzi Timer Multi-Functions, 7 Functions, Range: 0.1s-100h, DIN-Rail, SPDT, Supply: 24VDC and 24-240VAC.

Multi-voltage timer with 7 knob selectable functions and 7 knob selectable time ranges within 0.1s and 100h. For mounting on DIN-rail (DMB01) or Plug-in (PMB01).

General Characteristics

• Time range 0.1 s to 100 h

• 7 knob selectable functions:

• Op - delay on operate
• In   - interval
• Io   - interval on trigger open
• Id   - double interval
• Dr  - delay on release
• R   - symmetrical recycler ON first
• Rb - symmetrical recycler OFF first

• Knob selection on time range

• Knob-adjustable time setting

• Automatic or manual start

• Repeatability: ≤ 0.2%

• Output: 8 A SPDT or 8 A DPDT relay

• For mounting on DIN-rail in accordance with DIN/EN 50 022 or Plug-in

• 22.5 Euronorm or 36 mm Plug-in module housing

• Combined AC and DC power supply

• LED indication for relay status and power supply ON
