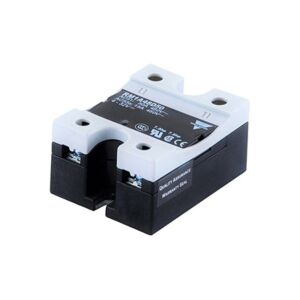

Carlo Gavazzi Solid State Relay 1-Phase Zero-Cross RM1A23D50P65

Carlo Gavazzi Solid State Relay 1-Phase Zero-Cross with LED & Varistor, Control: 3-32VDC, Operational: 230VAC, 50A, Option: P65.

The industrial, 1-phase relay with antiparallel thyristor output is the most widely used industrial SSR due to its multiple application possibilities. The relay can be used for resistive, inductive and capacitive loads. The zero-switching relay switches ON when the sinusoidal curve crosses zero and switches OFF when the current crosses zero. The instant-on relay with DC control input can be used for phase control. The built-in varistor secures transient protection for the heavy industrial applications, and the LED indicates the status of the control input. The clip-on cover is securing touch protection to IP 20. Protected output terminals can handle cables up to 16mm2.

General Characteristics

• Zero switching (RM1A) or instant-on switching (RM1B) AC Solid State Relay.
• Direct copper bonding (DCB) technology.
• LED indication.
• Built-in varistor.
• Clip-on IP 20 protection cover.
• Self-lifting terminals.
• Housing free of moulding mass.
• 2 input ranges: 3-32* VDC and 20-280VAC/22-48VDC.
• Operational ratings: Up to 100AACrms and 600VACrms.
• Blocking voltage: Up to 1400Vp.
• Opto-isolation: > 4000VACrms.
