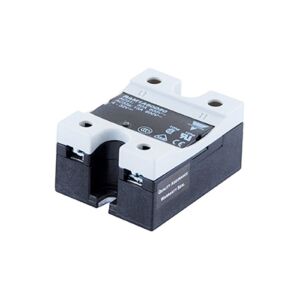

Carlo Gavazzi Solid State Relay 1-Phase Zero-Cross RAM1A23A50

Carlo Gavazzi Solid State Relay 1-Phase Zero-Cross with LED, Control: 20-280VAC/22-48VDC, Operational: 230VAC, 50A.

The industrial, 1-phase relay with antiparallel thyristor output is the most widely used industrial SSR due to its multiple application possibilities. The relay can be used for resistive, inductive and capacitive loads. The zero switching relay switches ON when the sinusoidal curve crosses zero and switches OFF when the current crosses zero. The instant-on relay with DC control input can be used for phase angle control. The built-in snubber secures transient protection. The LED indicates the status of the control input. The clip-on cover secures touch protection (IP 20). Protected output terminals can handle cables up to 16 mm2.

General Characteristics

• Zero switching (RAM1A) or instant-on switching (RAM1B) AC Solid State Relay.
• Direct copper bonding (DCB) technology.
• LED indication.
• Clip-on IP 20 protection cover.
• Self-lifting terminals.
• Housing free of moulding mass.
• 2 input ranges: 3-32VDC and 20-280VAC/22-48VDC.
• 4-32VDC for RAM1A60..., RAM1A69..
• 4-32VDC for RAM1B..
• Operational ratings: Up to 125AACrms and 690VACrms.
• Blocking voltage: Up to 1600Vp.
• Opto-isolation: > 4000VACrms.
• Integrated overvoltage protection by self-switching (suffix “Z” option).
