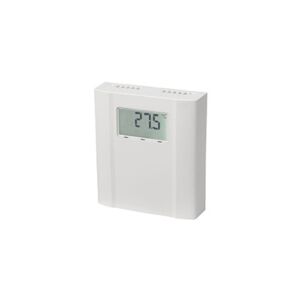

Carlo Gavazzi Smart Dupline Fieldbus Sensor Temperature+Humidity SHSUTHD

Carlo Gavazzi Smart Dupline Fieldbus Sensor w/Display for Temperature (-20 to 50Deg. C) + Humidity (0 to 100%RH), Wall Mount, Dupline Powered.

The SHSUXXXXD line are bus-powered room sensors for wall-mounting. They are available in different combinations of CO2, temperature and relative humidity. The sensors have a LCD display for showing the measured values. By activating the touch button in the front the LED backlight is turned on and the signal type to be shown can be changed. The only connection needed for the sensor is the Dupline® 2-wire cable. Several sensors can be multi- dropped via the same Dupline® 2-wire bus, thereby simplifying the wiring to the controller significantly. The address assignment and the setup of the display operating mode are performed over the bus by using the SBWEB/SHWEB PC-based programming tool.

General Characteristics

• Bus-powered CO2, temperature, and humidity sensors.
• Wall mounting.
• CO2 measuring range: 0 to 2000 ppm.
• Temperature measuring range: -20 to 50 °C.
• Humidity measuring range: 0 to 100 %RH.
• LCD Display for showing measured values.
• Touch function to activate back-lighting and change signal type.
• Low current consumption.
• Easy installation.
• Smart Dupline® protocol.
