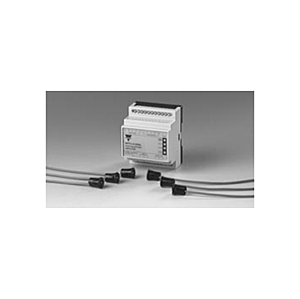

Carlo Gavazzi Photoelectric Sensor Amplifier, MPF3-912RSL

Carlo Gavazzi Sensor Amplifier For Use With Photoelectric Sensor Through Beam, 3 Channels, DIN-Rail, SPST, Supply: 12-24VAC/DC

The MPFRS.. is a family of inexpensive general purpose photoelectric sensors in 3 different types of housings with separate amplifier. They are designed to meet the requirements for industrial doors and gates. The “Snap-ON” photo switch can be mounted in material with a thickness from 0.6 mm and up to 2.25 mm. The sensor set is easy to use and no adjustments are necessary. The amplifier has a test input designed to disable the emitters and therefore evaluate the sensor function. Multiplexed channels prevent cross-talk between each set of photo sensors. The amplifier is available with the following voltage: 12-24 VAC/DC. The output is made as positive security e.g. power lost, short-circuit or broken sensor cable makes the relay go to off state.

General Characteristics

• Industrial doors and gates
• Range: 15 m
• Modulated infrared light
• Amplifier with “Snap-ON” photoelectric switches
• Supply voltage: 12-24 VAC/DC
• Output: SPST relay (low voltage)
• LED indications for light ON and supply ON
• 4 module M36 DIN rail housing
• Ø12 mm “Snap-ON”, Ø18 or M14 photoelectric housing
• 1, 2 or 3 multiplexed channels
• Positive safety, NF P25-362 standard
