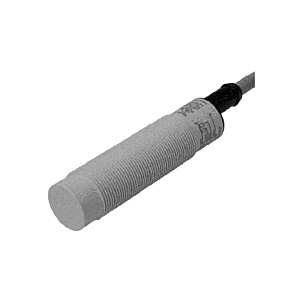

Carlo Gavazzi Proximity Sensor Capacitive M18 CA18CAN12PAM1

Carlo Gavazzi Proximity Sensor Capacitive, M18 Thermoplastic Polyester Housing, Adjustable 0-12mm Non-Flush, PNP NO & NC Switching, M12 Plug, 10-40VDC.

The CA18CA.. capacitive proximity switches feature an improved 4TH Genera¬tion TRIPLESHIELDTM tech¬nology. Furthermore, these sensors feature increased immunity to electromagnetic interference (EMI), especial¬ly to frequency drives. Not only does 4TH Generation TRIPLESHIELDTM feature an increased EMI, but it also increases the immuni¬ty to humidity and dust. The implementation of stability indication eases the setup procedure as both Stable ON and Stable OFF positions are indicated by the Green and yellow LEDs. The sensing distance is increased by 25 % allowing room for additional stable detection. The Dust Alarm function gives an early warning that the sensing surroundings have to be cleaned. The Temperature alarm func¬tion raises an alarm if the sensing surface goes beyond 60 degree celcius. The sensor housing is featur¬ing IP69K as well as approval by ECOLAB for cleaning-and disinfection agents.

General Characteristics

• 4TH Generation TRIPLESHIELD.
• Adjustable sensing distance: 2 - 10 mm Flush or 3 - 15 mm Non-flush.
• Protection: short-circuit, transients and reverse polarity.
• Dust and humidity compensation.
• Dust or Temperature alarm output.
• Rated operational voltage: 10-40 VDC.
• Output: DC 200 mA, NPN or PNP.
• Standard Output: NO and NC.
• LED indications for Power-supply, Target and Stability.
• IP67, IP68, IP69K, Nema 1, 2, 4, 4X, 5, 6, 6P, 12.
• Cable and M12 connector versions available.
