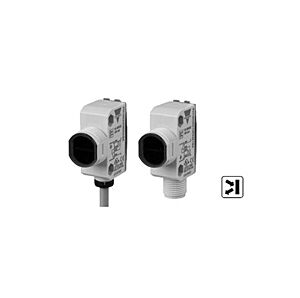

Carlo Gavazzi Photoelectric Sensor Diffuse Reflective M18 Square, PH18CND10PAM1SA

Carlo Gavazzi Photoelectric Sensor Diffuse Reflective, M18 Square ABS Housing, Adjustable 1m, PNP NO & NC Switching, M12 Plug, 10-30VDC

The PH18CND10... is part of a family of inexpensive general purpose diffuse reflective sensors in industrial standard 18 mm cylindrical and square ABS housing. The sensors are useful in applications where high accuracy detection as well as small size is required. Compact housing and high power LED for excellent performance-size ratio. The potentiometer used for adjustment of the sensitivity makes the sensors highly flexible. The output type is NPN or PNP and the output switching function is NO and NC.

General Characteristics

• Miniature sensor range
• Range: 1 m
• Sensitivity adjustment by potentiometer
• Modulated, red light 625 nm
• Supply voltage: 10 to 30 VDC
• Output: 100 mA, NPN or PNP, N.O & N.C.
• Degree of protection IP67, IP69K
• LED indication for output, stability and power ON
• Protection: reverse polarity, short circuit and transients
• Cable, plug and pigtail versions
• Excellent EMC performance
