Carlo Gavazzi Monitoring Relay Frequency Plug-In PFB01CM24

Carlo Gavazzi Monitoring Relay Frequency Monitoring, Range: 50-60Hz, Plug-In, SPDT, Supply: 24-240VAC.

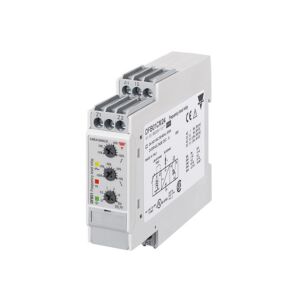

DFB01 and PFB01 are precise frequency monitoring relays. The relays monitor their own power supply from 24 to 240 VAC. The advantage of using the latch function is that the relay can be kept energized even after the end of the alarm condition. Inhibit function can be used to avoid relay operation when not desired (maintenance, transitions). The LED's indicate the state of the alarm and the output relay.

General Characteristics

• Over/under frequency monitoring relays.
• Measuring if power supply frequency is within set limits.
• Measure on own power supply.
• Measuring ranges: Voltage: 24 to 240 VAC, Frequency: 50 - 60 Hz.
• Separately adjustable upper/lower level on relative scale.
• Adjustable delay on alarm or on recovery (0.1 to 30 s).
• Programmable latching or inhibit at set level.
• Output: 8 A SPDT relay N.D. or N.E. selectable.
• For mounting on DIN-rail in accordance with DIN/EN 50 022 (DFB01) or plug-in module (PFB01).
• 22.5 mm Euronorm housing (DFB01) or 36 mm plug-in module (PFB01).
• LED indication for relay, alarm and power supply ON.
