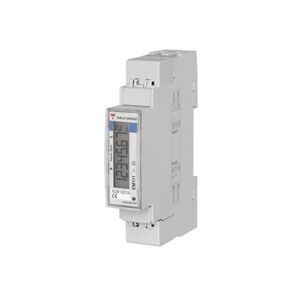

Carlo Gavazzi Energy Analyzer 1-Phase Din-Rail EM111DINAV51XS1X

Carlo Gavazzi Energy Analyzer 1-Phase, Range: 230VLN AC, 5(6A) CT, Output: RS485, Din-Rail, Supply: Self Powered.

Single-phase energy meter with backlit LCD display with integrated touch keypad. Particularly indicated for active energy metering and for cost allocation in applications up to 32 A (direct connection), or up to 300 A (CT connection) or up to 600 A (333 mV current sensor), with dual tariff management availability. It can measure imported and exported energy or be programmed to sum them into an unique totalizer. Housing for DIN-rail mounting, with IP51 front degree protection. The meter is provided with pulse output proportional to the active energy being measured, RS485 Modbus port or M-bus port.

General Characteristics

• Single phase energy analyzer.
• Class 1 (kWh) according to EN62053-21.
• Class B (kWh) according to EN50470-3.
• Accuracy ±0.5% RDG (current/voltage).
• Current measurement via 333 mV current sensor up to 600 A (MV5).
• Current measurement via CT up to 300 A (AV5).
• Rated primary current: 32A (AV7, AV8).
• Max primary current: 45 A (AV7, AV8).
• Max cable cross section: 6 mm2.
• Backlit LCD display with integrated touch key-pad.
• Energy readout on display: 7 digit.
• Variable readout on display: 4 digit.
• Energy measurement: kWh and kvarh (imported/exported); kWh+ by 2 tariffs.
• System variables, kW, kvar, V, A, PF, Hz, kWdmd, kWdmd peak.
• Self power supply.
• Dimensions: 1-DIN module.
• Protection degree (front): IP51.
• Pulse output (by open collector PNP).
• RS485 Modbus port.
• M-bus port.
• Digital input (for tariff management).
• Easy connection or wrong current direction detection.
• Compliant with the international accuracy standard IEC/EN62053-21, and the IEC/EN61557-12 performance requirements (active power and active energy).
• Certified according to MID Directive (option PF only).
