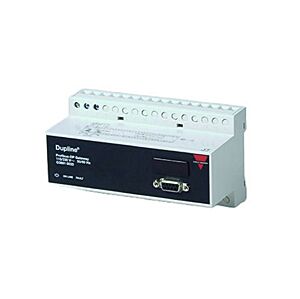

Carlo Gavazzi Dupline Fieldbus Gateway Profibus-DP G38910120230

Carlo Gavazzi Dupline Fieldbus Gateway With Profibus-DP Slave, H8 Housing Din Rail Type, Supply: 115/230VAC.

Dupline® Gateway with the function of a PROFIBUS-DP slave. This means that the Dupline® I/O’s (incl. multiplexed analog signals) can be read/controlled by PROFIBUS-DP masters (PLC’s, PC interface cards, etc. from various suppliers). Several Dupline® gateways can be connected to the same Dupline® network. The unit is certified by PNO (Profibus Nutzer Organisation) which ensures compatibility and interoperability with other PNO certified products.

General Characteristics

• Passive gateway without channel generator.
• PROFIBUS-DP slave according to EN 50 170.
• Certified by the PNO.
• Can be connected at any point in a Dupline® network.
• Several gateways can be connected to the same Dupline® network.
• PROFIBUS-DP communication speed of up to 12 MBaud.
• Read/control 128 Dupline inputs/outputs through PROFIBUS-DP.
• Multiplexed analog signals can be read via the PROFIBUS-DP network.
• For mounting on DIN-rail (EN 50 022).
• LED indicators for supply, Dupline® carrier and fault.
• AC power supply.
