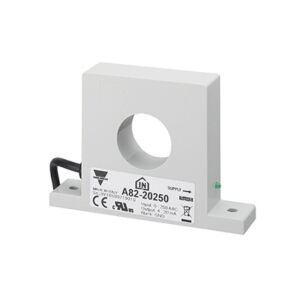

Carlo Gavazzi Current Transformer AC True RMS A82-10100

Carlo Gavazzi Current Transformer AC True RMS, Input: 0-100AAC, Output: 0-20mADC (source).

True RMS AC current metering transformer for 25, 50, 100, 250 or 500 AAC. Output current in accordance with IEC 60381-1 (A 82-10, A 82-20) or output voltage in accordance with IEC 60381-2 (A 82-30). A 82-10 and A 82-20 can be used with relays DIB01, PIB01, DIC01 or PIC01. A 82-30 can be used with DUB01, PUB01, DUB71, DUC01 or PUC01. All units can be directly connected to a PLC. Power supply ON is indicated by a green LED on the side of the housing.

General Characteristics

5 types of input.

• 0 - 25 AAC.
• 0 - 50 AAC.
• 0 - 100 AAC.
• 0 - 250 AAC.
• 0 - 500 AAC.

3 types of output.

• A 82-10: 0 - 20 mADC (source).
• A 82-20: 4 - 20 mADC (sink).
• A 82-30: 0 - 10 VDC.

Easy interface to PLC or set point relays.
