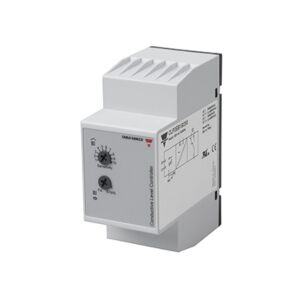

Carlo Gavazzi Conductive Sensor Level Controller Plug-In CLP2EB1B724

Carlo Gavazzi Conductive Sensor Level Controller, 2-Point Level Charging/Discharging, Sensitivity Adjust 5K-150K Ohm, SPDT, Plug-In, Supply: 24VDC.

μ-Processor based level controller for liquids with a wide sensitivity range (like sewage water, chemicals, salt water etc.). Max./min. control of charging/discharging. The sensitivity is adjustable by means of the potentiometer. 1 x 8A SPDT relay output.

General Characteristics

• Conductive level controller.
• Sensitivity adjustment from 5K Ohm to 150K Ohm.
• For filling or emptying applications.
• Low-voltage AC electrodes.
• Easy installation with 11 pin circular plug.
• Rated operational voltage: 24 VDC, 24 VAC, 115 VAC or 230 VAC.
• Output 1 x 8A/250 VAC SPDT relay.
• LED indication for: Output ON and Power ON.
