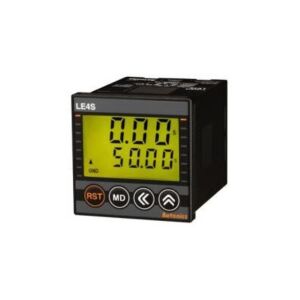

Autonics Timer Digital LCD 4 Digits, LE4S

Autonics LCD Digital Timer, DIN W48xH48mm, 4 Digits (9999), Signal On Start, Output: Relay SPDT (1c), Supply: 24-240VAC/VDC

Upgraded back light type digital LCD timers LE4S/LE4SA are downsized by approx. 22% saves mounting space and adopted the new design nameplate. In addition, it is available to set each value and time range separately when choosing Flicker(FK, FK I) or ON-OFF Delay(ON OFF D, ON OFF D I) output mode. New LE4S/LE4SA's upgraded powerful functions of wide variety would fully satisfy customers’ needs.

General Characteristics

• Mounting space saving with compact design : downsized by approx. 22% in depth compared to existing models (Length of panel on the back side is 56mm)
• Available to set each value and time range separately when choosing Flicker(FK, FK I) or ON-OFF Delay(ON OFF D, ON OFF D I) output mode (existing model: setting value only)
• Add Flicker 1 mode (LE4SA)
• Set One-shot output time (0.01~99.99sec) (existing model : Fixed 0.5 sec)
• Time range is configurable (time setting range to 9.999sec) : Able to set to 0.001sec (existing model : 0.01sec)
• Choose Min. input signal : 1ms or 20ms (existing model: Fixed 20ms) (LE4S)
• Improved return time: 100ms (existing model : 300ms, 500ms)
• Back light ON/OFF function
• Providing more easy function setting modes
• Wide time range
• Lock setting function for saving setting value.
• Function setting with soft touch
• High visibility display with back light
• Wide range of power supply: 24-240VAC 50/60Hz, 24-240VDC
