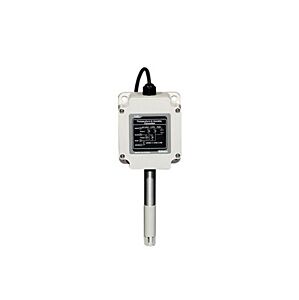

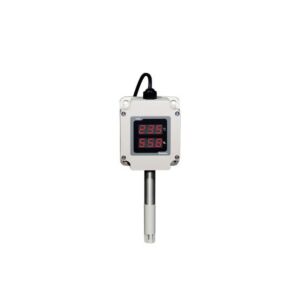

Autonics Temperature/Humidity Transducer Wall Mount THD-WD1-C

Autonics Temperature / Humidity Transducer, Wall Mounting Type, 3 Digits Display, 100mm Sensing Pole, Output: Current 4-20mADC, Supply: 24VDC.

Temperature / Humidity transducer THD series is high sensitivity sensor with compact size that supports various outputs and communication function for user’s convenience. The series realizes the optimal temperature / humidity control connecting with temperature controllers and panel meters. Also, the series allows more diverse user’s selection by providing indoor type (THD-R series), duct mount type (THD-D series) and wall mount type (THD-W) as its working environment.

General Characteristics

• Compact design
• Built-in high sensitivity temp./humidity sensor
• 7 Segment LED display (THD-DD/THD-WD)
• Various output model: DC4-20mA, 1-5VDC, RS485 (MODBUS RTU)
• Wide range of temp./humidity measurement : -19.9 to 60.0℃ / 0.0 to 99.9% RH
• Communication speed: 115200bps
